Today, as digital transformation accelerates, enterprises' demand for asset management has shifted from "recording existence" to "controlling dynamics". Real-time positioning system (RTLS) asset tracking technology, by integrating the Internet of Things, wireless communication and data analysis capabilities, gives physical assets "digital coordinates" to achieve real-time perception and intelligent decision-making of location, status and behavior. This technology not only reshapes the traditional asset management model, but also becomes a core tool for enterprises to improve operational efficiency, reduce risks and optimize resource allocation.
The core composition of RTLS asset tracking: the collaboration of hardware, algorithms and ecology
The RTLS asset tracking system consists of three core modules, and their collaborative work realizes a complete closed loop from data collection to value output:
Smart tags: identity and perception terminals of assets
Smart tags are micro devices attached to assets, integrating communication modules (such as BLE, UWB, RFID), sensors (accelerometers, temperature and humidity sensors) and power management units. Its core functions include:
Unique identification: asset identification through MAC address or encrypted ID;
State perception: real-time collection of location, vibration, temperature and other data;
Low power design: using BLE 5.1 or energy harvesting technology to support years of battery life;
Environmental adaptability: with IP67 dust and water resistance, adapt to extreme environments from -40℃ to 85℃.
Positioning engine: intelligent conversion from signal to coordinates
The positioning engine is the "brain" of the RTLS system, which processes tag signals and calculates asset locations through algorithms. Its technical paths include:

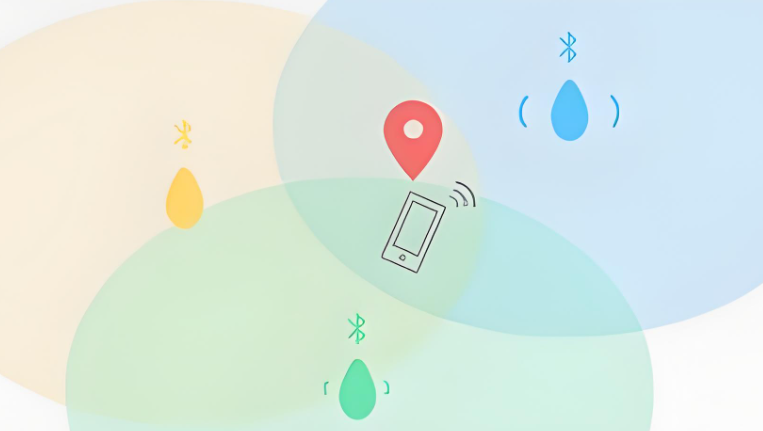

Triangulation method: building geometric models based on signal strength (RSSI) or time difference of arrival (TDOA);
Fingerprint recognition method: achieving high-precision matching through pre-stored environmental signal feature libraries;
Hybrid positioning architecture: integrating multiple technologies such as UWB, BLE, GNSS, etc. to achieve seamless indoor and outdoor coverage;
AI optimization algorithm: using machine learning to filter multipath interference and improve positioning stability in dynamic scenes.
Management platform: data-driven decision-making center
The management platform converts positioning data into visual insights and automated instructions. Its functions include:
Real-time map display: present asset location and movement trajectory in 2D/3D form;
Electronic fence management: set virtual boundaries for dangerous areas or restricted assets to trigger cross-border alarms;
Data analysis dashboard: generate key indicators such as asset utilization, turnover rate, and residence time;
System integration interface: support seamless connection with business systems such as ERP, WMS, and BMS to achieve data circulation.
Technical advantages of RTLS asset tracking: balance of accuracy, cost, and deployment
Compared with traditional positioning technology, RTLS has achieved breakthrough optimization in multiple dimensions:
Sub-meter positioning accuracy
Through UWB or AoA (angle of arrival) technology, RTLS can control the positioning error within 0.3 meters, meeting the tracking needs of high-value assets such as surgical instruments and precision instruments. Even in complex environments such as metal shelves and concrete walls, the hybrid positioning algorithm can still maintain a positioning success rate of more than 95%.
Low power consumption and long battery life
Tags using the BLE 5.1 protocol consume 80% less power than UWB tags, and can last up to 3 years on a single charge. Its dynamic sleep mechanism can automatically adjust the signal transmission frequency according to the asset status. For example, it reports the location of stationary assets every 10 minutes, while mobile assets are tracked in real time, further extending the battery life.
High scalability and flexibility
RTLS systems support large-scale deployment from single-area coverage to cross-floor and cross-campus coverage. The monitoring range can be easily expanded by increasing the number of positioning base stations or adjusting the topology; and the modular design allows enterprises to invest in stages according to needs, reducing initial deployment costs.
Open ecology and compatibility
Mainstream RTLS solutions provide standardized API interfaces and support linkage with third-party sensors, cameras, robots and other devices. For example, combining positioning data with video surveillance systems can achieve dual verification of "location + picture" and improve security management capabilities.
Application scenarios of RTLS asset tracking: from static management to dynamic optimization
RTLS technology has penetrated into multiple industries and has become the infrastructure for enterprise digital transformation:
Smart manufacturing: the nerve endings of dark factories
In automated production lines, RTLS can track the position and status of AGV carts, robotic arms, and material boxes in real time, dynamically optimize scheduling strategies, and reduce equipment idle time. At the same time, by analyzing the movement trajectory of equipment, the bottleneck of the production line can be identified to provide data support for process improvement.
Smart healthcare: the guardian of the speed of life
RTLS system can track surgical instruments, mobile devices, and patients throughout the process to ensure that key assets appear in the right place at the right time. For example, the electronic fence function can prevent the theft or misuse of high-priced equipment, optimize the layout of departments through trajectory analysis, and shorten the time for medical staff to find equipment.
Smart logistics: a transparent revolution in the supply chain
In warehousing scenarios, RTLS can achieve shelf-level positioning, guide pickers to quickly find target products, and improve outbound efficiency. In the transportation process, by integrating GPS and indoor positioning technology, the location and status of goods can be monitored throughout the process to prevent loss or damage, while optimizing the delivery route and reducing transportation costs.
Smart Energy: Remote Control of Hazardous Environments
In high-risk industries such as chemicals and electricity, RTLS can locate patrol personnel and mobile devices in real time to ensure that they operate according to standard routes. When personnel enter a dangerous area or remain stationary for a long time, the system automatically triggers an alarm and notifies the monitoring center, greatly improving the speed of emergency response.
RTLS asset tracking technology has broken through the scope of traditional positioning and evolved into a key infrastructure for enterprises to build digital twins and achieve intelligent decision-making. With the integration of 5G, AI and edge computing, RTLS is moving from "real-time tracking" to "predictive management" - by analyzing asset historical data and real-time status, predicting failure risks in advance, optimizing resource allocation, and preventing safety incidents. In this management revolution triggered by positioning technology, companies that master RTLS capabilities will gain more efficient operations, lower costs and stronger competitiveness, thereby gaining an advantage in the digital economy era.
