Blueiot GPS Tag

GPS Tag for Indoor&Outdoor Position Tracking

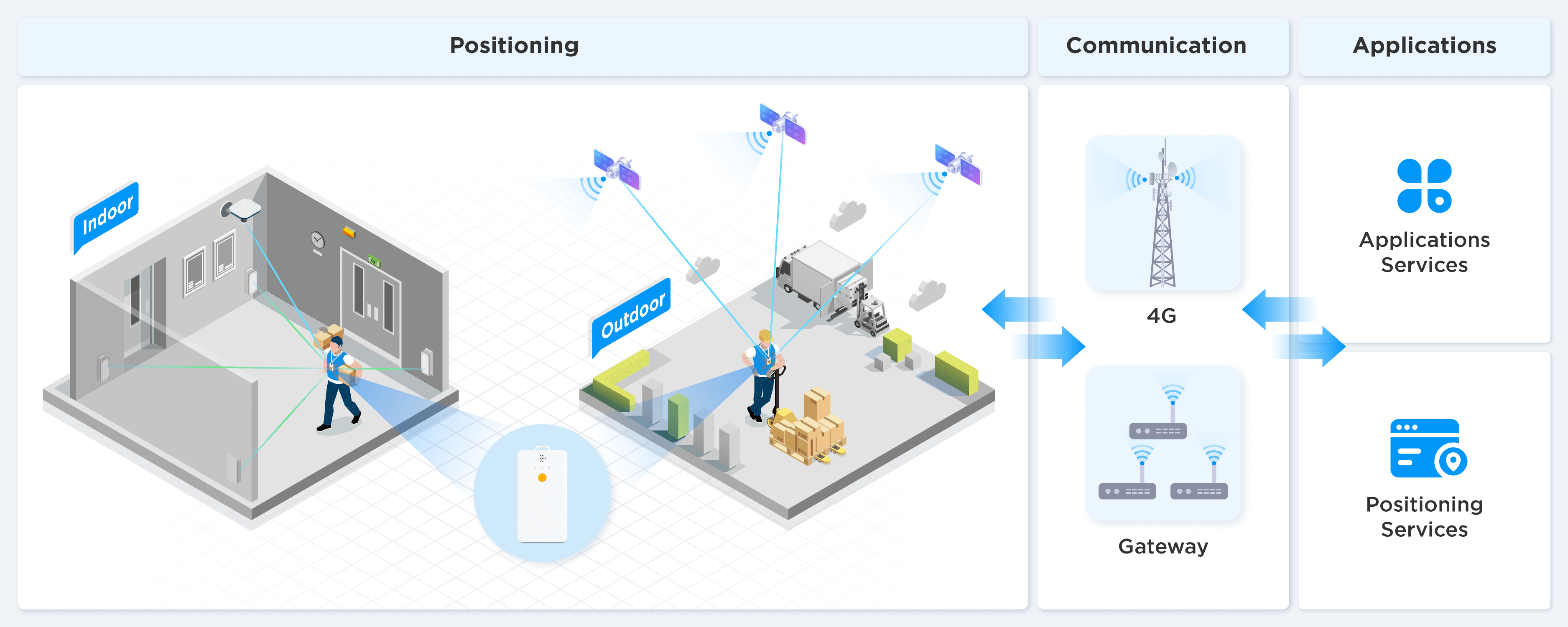

The Blueiot GPS Tag for indoor & outdoor position tracking is named the TBG3000 - BD series, which is badge - styled and easy to carry. Supporting various positioning techs , it's small, highly accurate, explosion - proof and with high protection level.Ideal for industries needing indoor/outdoor fusion such as chemical, mining, power, manufacturing and construction sites.

Optional indoor positioning technology:  Bluetooth AOA,  Bluetooth beacon

Optional outdoor positioning technology: GPS, Bluetooth beacon

Optional communication technologies: Mobile cellular network (4G), LoRa

Product Overview

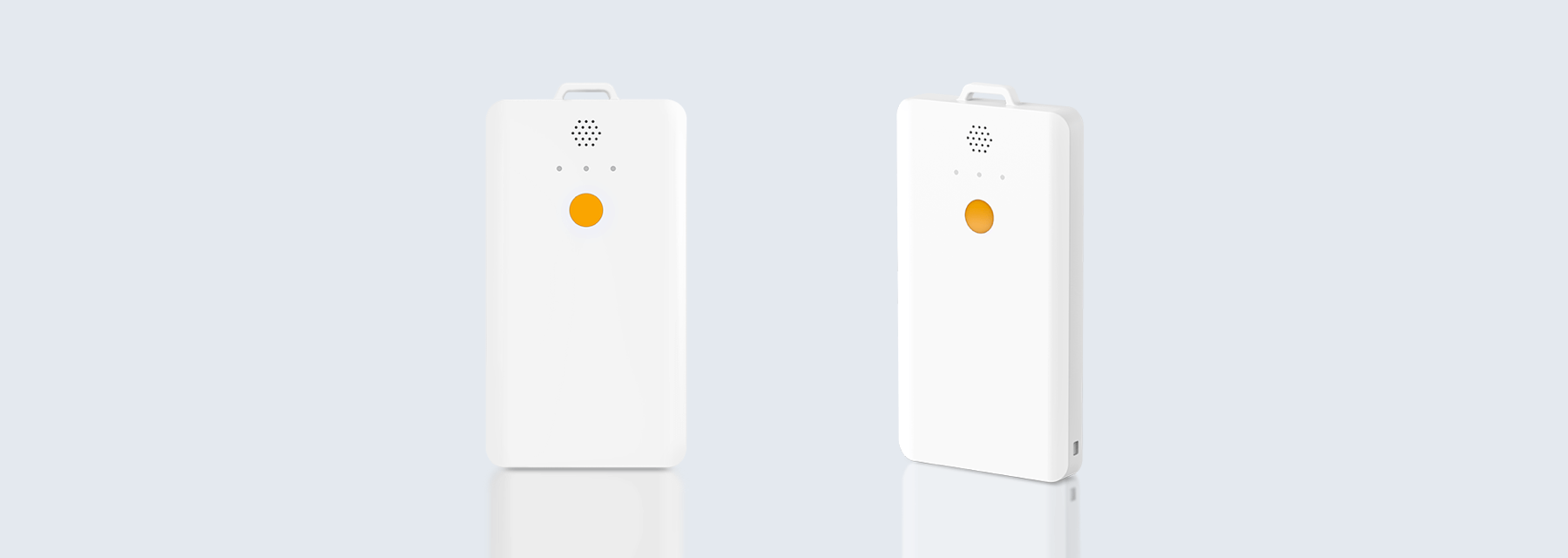

TBD3000-BD

Features

Comprehensive positioning coverage for Indoor and outdoor

Indoor/outdoor high - accuracy positioning

Badge design, easy to carry

Integrates Bluetooth module, GPS for reliable industrial adaptation

Technical Specification

Positioning Technology

GPS, Bluetooth AOA, beacon

Data Transmission Method

4G, Lora

Ranging Accuracy

0.1 ~ 1m

Refresh Rate

Up to 30Hz, adjustable

Battery type

Rechargeable lithium battery

Ingress Protection

IP67

Dimensions

115mm×60mm×11mm

Weight

83g

Operating Temperature

-30 ~ 75℃

Buzzing

Alarm button

Vibration

RFID

Application Scenario

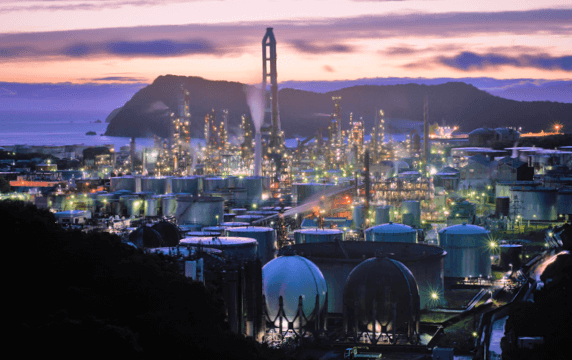

Petrochemical

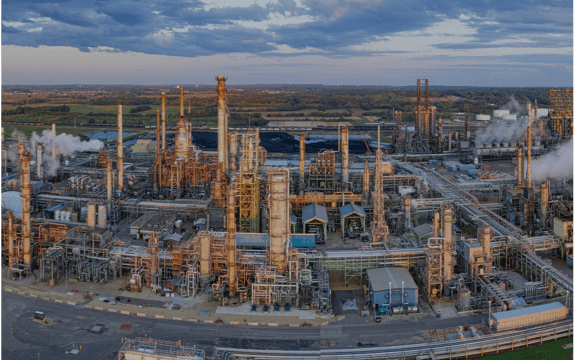

Industrial Parks

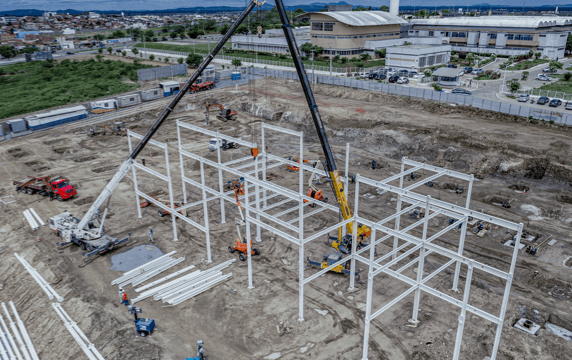

Construction Sites
